CNC Grinding Machine

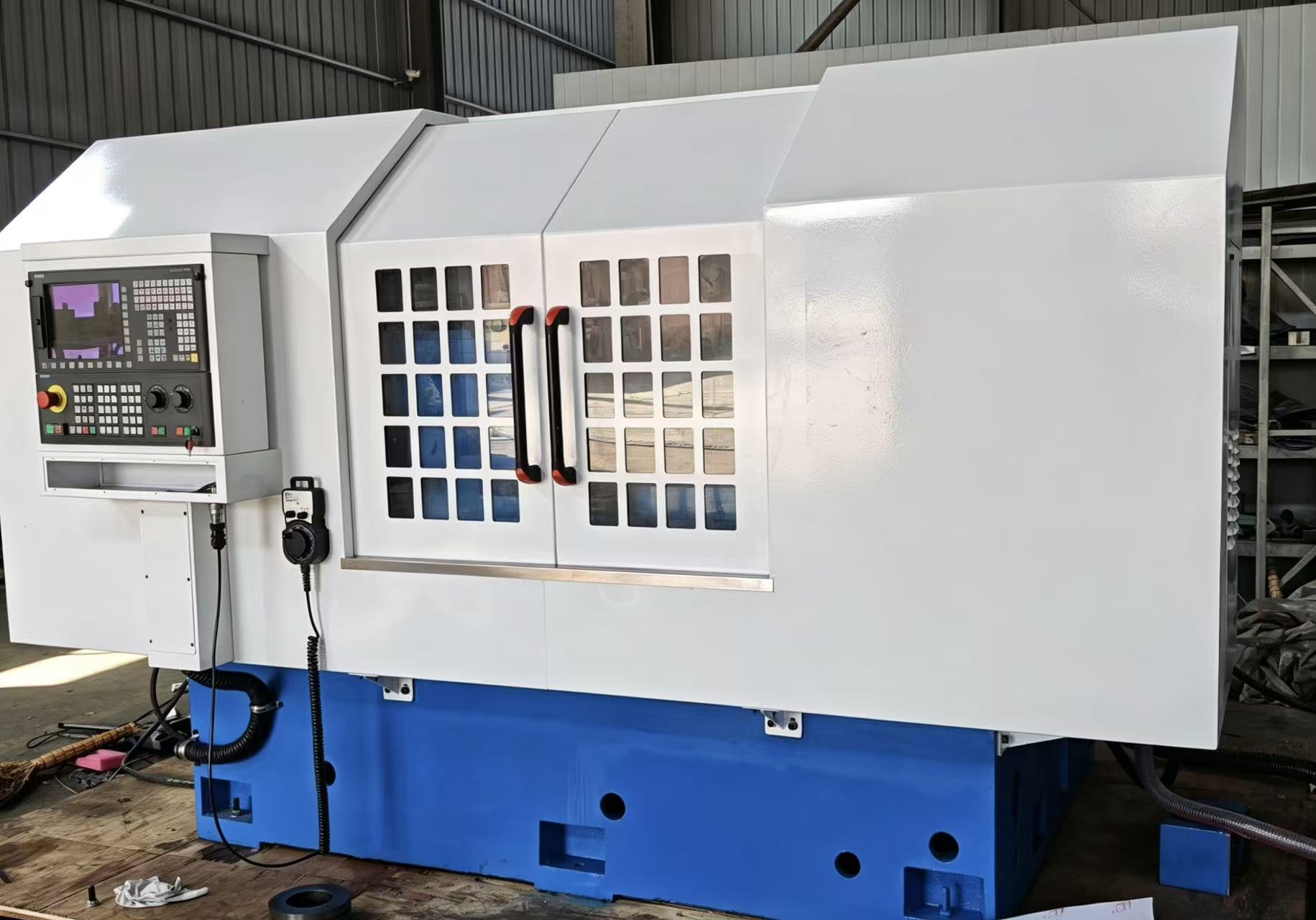

Features: The control system adopts FANUC numerical control system, which can realize continuous dressing, automatic compensation, and automatic processing of the grinding wheel during the grinding operation, and can use the full closed loop feedback of the optical ruler to complete the high-precision grinding operation setting set. Machine characteristics The vertical accuracy of horizontal plane and vertical plane is controlled below 0.002mm. CNC series grinders are especially suitable for linear slides and sliders, high-precision molds and other grinding operations with strict vertical accuracy requirements. Equipped with a dynamic pressure spindle with high rigidity, low vibration and high cutting ability to ensure the precision performance of grinding and honing. Reinforced rib box design. This machine uses Mihana casting to ensure high rigidity and stability of the machine. Manual high-precision spade flowers, wear-resistant patches and dynamic pressure lubrication system ensure machine quality and service life. C1 grade ball screw due to the characteristics of static pressure lubrication, can reduce the interaction of friction, and can increase rigidity and positioning accuracy, the minimum feed is within 0.1um. When the lubrication system is operating, the oil supply guide rail and lead screw of the automatic circulation lubrication system ensure that all key parts can be properly lubricated at any time. All high-precision spindles are installed by experienced technicians in a constant temperature and dust-free workshop. They are matched with P4 super-precision angular contact ball bearings and pre-pressed. The bearings are combined with special options and balanced shaft cores to ensure the spindle Beating within 0.002mm, low temperature rise, low beating, low vibration, high precision grinding

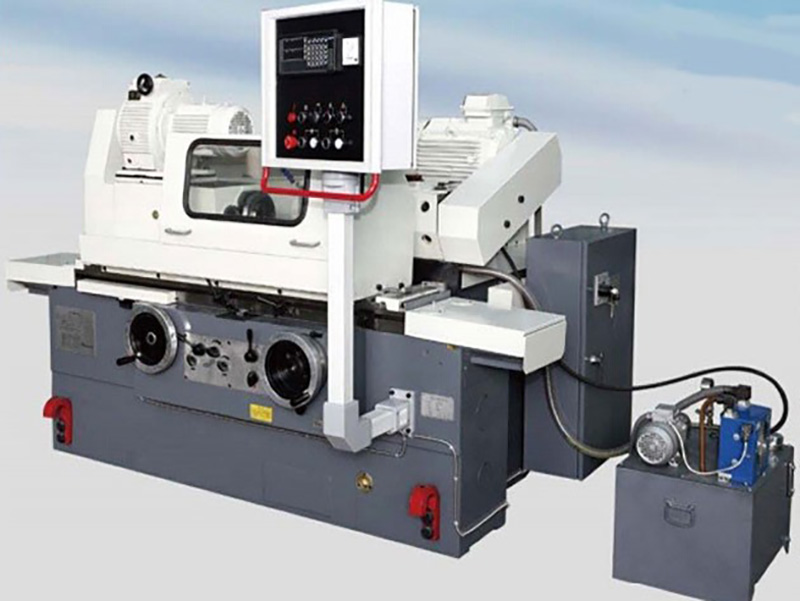

This machine tool is a diamond grinding wheel used as a cutting tool. It is mainly used for the roughening, semi-finishing, precision grinding and sparkless grinding of the outer circle and R-groove of tungsten carbide hard alloy roll rings for high-speed wire production. High-precision and powerful special-purpose grinding machine such as grinding.

Structural features of roller ring grinder:

The machine tool uses an independent console, an independent electrical cabinet, and is equipped with a high-precision two-axis digital display device. The speed of the workpiece spindle is adjusted by mechanical stepless speed change.
Grinding wheel spindle bearings adopt high-precision, high-rigidity hydrostatic and hydrostatic liquid bearings, and are equipped with independent oil supply systems.
The static pressure unloading guide rail is adopted for the movement of the table and the bed, which is stable and reliable.

This machine tool is a diamond grinding wheel used as a cutting tool. It is mainly used for the roughening, semi-finishing, precision grinding and sparkless grinding of the outer circle and R-groove of tungsten carbide hard alloy roll rings for high-speed wire production. High-precision and powerful special-purpose grinding machine such as grinding.

Structural features of roller ring grinder:

The machine tool uses an independent console, an independent electrical cabinet, and is equipped with a high-precision two-axis digital display device. The speed of the workpiece spindle is adjusted by mechanical stepless speed change.
Grinding wheel spindle bearings adopt high-precision, high-rigidity hydrostatic and hydrostatic liquid bearings, and are equipped with independent oil supply systems.
The static pressure unloading guide rail is adopted for the movement of the table and the bed, which is stable and reliable.

This machine tool is a diamond grinding wheel used as a cutting tool. It is mainly used for the roughening, semi-finishing, precision grinding and sparkless grinding of the outer circle and R-groove of tungsten carbide hard alloy roll rings for high-speed wire production. High-precision and powerful special-purpose grinding machine such as grinding.

Structural features of roller ring grinder:

The machine tool uses an independent console, an independent electrical cabinet, and is equipped with a high-precision two-axis digital display device. The speed of the workpiece spindle is adjusted by mechanical stepless speed change.
Grinding wheel spindle bearings adopt high-precision, high-rigidity hydrostatic and hydrostatic liquid bearings, and are equipped with independent oil supply systems.
The static pressure unloading guide rail is adopted for the movement of the table and the bed, which is stable and reliable.

Purpose and performance characteristics of machine tools

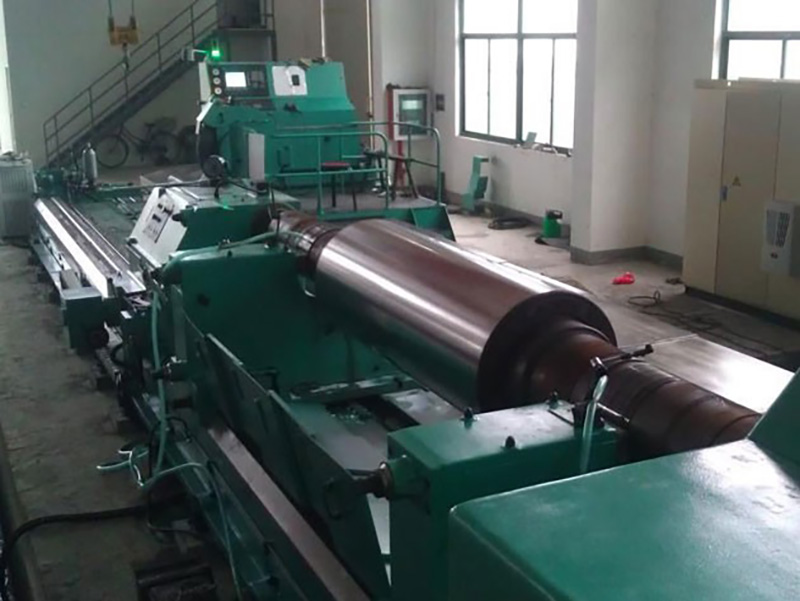

This machine tool is suitable for grinding various roll profiles with medium height or concavity on medium and small rolling mills. It can grind cylindrical roll necks and other external workpieces after removing the copying device.
The longitudinal movement of the machine tool table is continuously driven by hydraulic pressure. It can also be driven by hand wheel.
The horizontal feed of the grinding wheel frame can also be performed by hydraulic automatic micro feed and rapid advance or retreat or hand wheel feed.
Grinding wheel frame and table rail are hydrostatically lubricated.
Workpiece, grinding wheel, oil pump, water pump, etc. are driven by separate motors.
Each moving part of the machine tool has an electrical, hydraulic and mechanical interlocking structure, which is safe and reliable to operate.

Purpose and performance characteristics of machine tools
This machine tool is suitable for grinding various roll profiles with medium height or concavity on medium and small rolling mills. It can grind cylindrical roll necks and other external workpieces after removing the copying device.
The longitudinal movement of the machine tool table is continuously driven by hydraulic pressure. It can also be driven by hand wheel.
The horizontal feed of the grinding wheel frame can also be performed by hydraulic automatic micro feed and rapid advance or retreat or hand wheel feed.
Grinding wheel frame and table rail are hydrostatically lubricated.
Workpiece, grinding wheel, oil pump, water pump, etc. are driven by separate motors.
Each moving part of the machine tool has an electrical, hydraulic and mechanical interlocking structure, which is safe and reliable to operate.

tool grinding machine

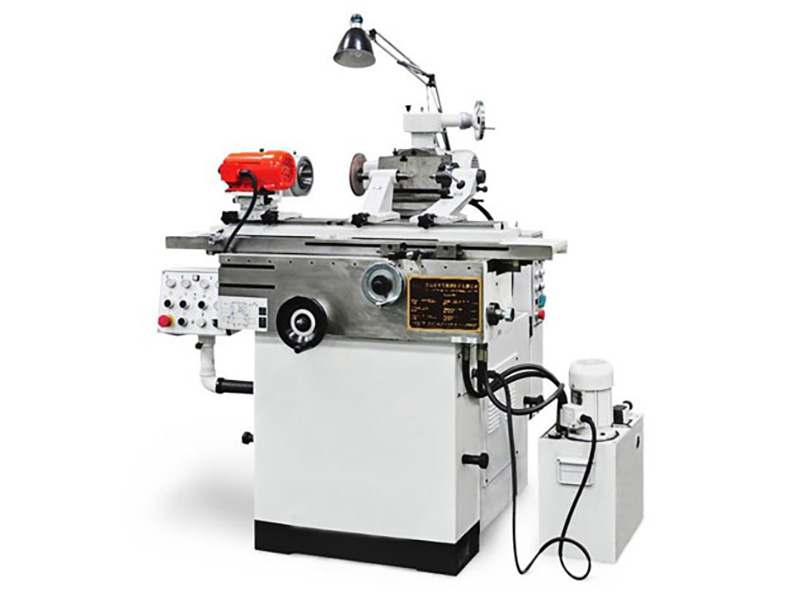

The tool grinding machine has high precision, good rigidity, and is economical and practical. It is especially suitable for sharpening various small and medium-sized tools, such as reamers, taps, twist drills, reaming drills, various milling cutters, milling cutter heads, and gear shapers. With the corresponding accessories, it can grind the outer circle, inner circle and plane, and can also grind samples and molds. Diamond wheels can be used to sharpen a variety of carbide tools.
The universal tool grinder is an improved tool grinder with excellent performance. After attaching accessories, it can grind the outer circle, the inner screen surface, and the template in addition to the common tools and various special tools such as sharpening cutters, milling cutters, inclined groove hobs, broach cutters, and gear cutters. The processing range is relatively wide.
